MC Stepup Transformer "ETR-800P"

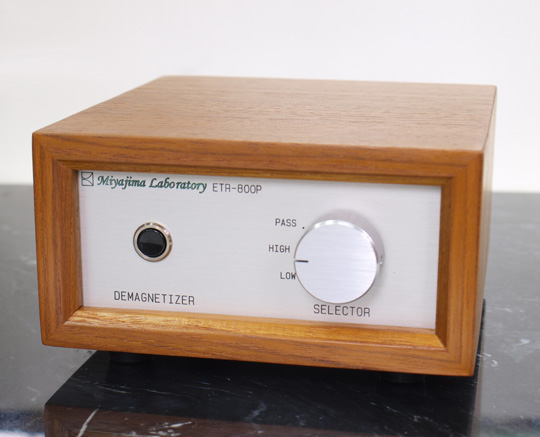

ETR-800P

I have regarded clear sound and low tone quality as important not to spoil a good point of Cartridge.
I think that stepup transformer ETR-800P acts on not only Miyajima-Lab's Cartridge but also the cartridge of other companies effectively.

- ETR-800P is installed in a beautiful TEAK case.
- The calking material is "paraffin"
- Highest grade core material, permalloy 80 for the core of the transformer is used.
- There is a changeover switch of Low,High,Pass.
- The left button is a demagnetization function.


Demagnetizer
The DEMAGNETIZER switch removes the magnetization of a cartridge and the stepup transformer.
Please push this button for ten seconds while listening to LP music. While you push the button, the music stops.
A cartridge and a transformer are demagnetized by the interchange signal of the LP.
A sound is slightly cleared by demagnetizing it. Please use demagnetization every several months.
Because this demagnetization method does not add electricity, the cartridge is safe.


 Product name  Stepup Transformer "ETR-800P"
 Input  Low(2 to 20ohms)
 High(10 to 40ohms)
 Pass(50k ohms)
 Output Impedance  50k ohms
 Voltage up ratio  Low(33dB) About 50 times
 High(27dB) About 25 times
 Frequency range  10 Hz to 20 kHz
 Demagnetizer  Push button to demagnetize.
 Dimension  W150 H85 D180
 Weight  1.3kg

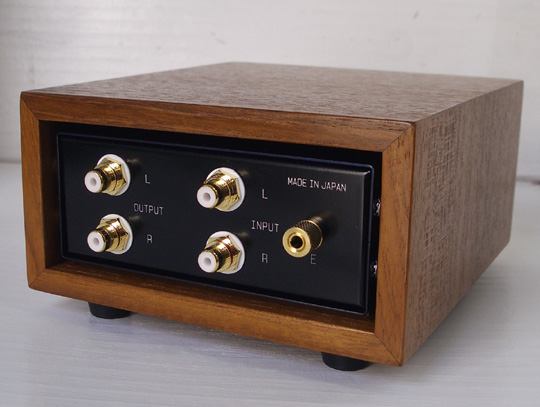

ETR-800Pb
