MC Stepup Transformer "ETR-KSW"


This stepup transformer "KSW" was produced exclusively for Kansui,Shilabe,Waza.
It is the stepup transformer which is ideal for a stereo cartridge of Miyajima-Lab.
KSW removed the extra functions such as selectors to improve sound quality.

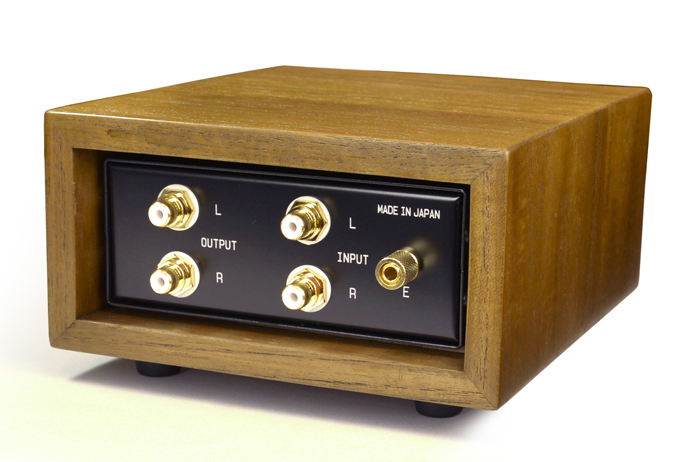

- KSW is installed in a beautiful TEAK case.
- The calking material is "paraffin"
- Highest grade core material, permalloy 80 for the core of the transformer is used.

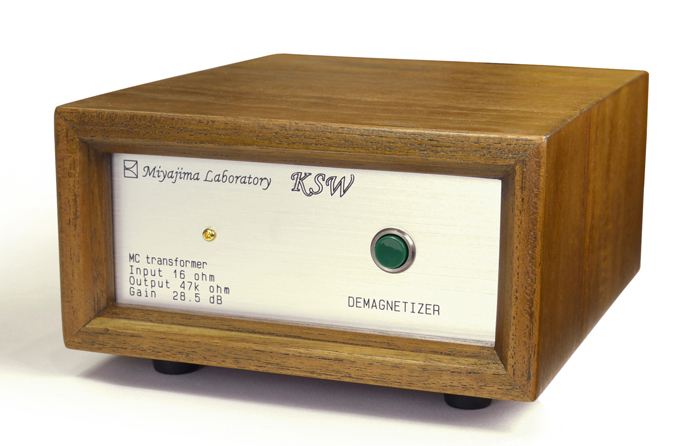

- The front button is a demagnetization function.

The DEMAGNETIZER switch removes the magnetization of a cartridge and the stepup transformer.
Please push this button for ten seconds while listening to LP music. While you push the button, the music stops.
A cartridge and a transformer are demagnetized by the interchange signal of the LP.
A sound is slightly cleared by demagnetizing it. Please use demagnetization every several months.
Because this demagnetization method does not add electricity, the cartridge is safe.

 Product name  Stepup Transformer "ETR-KSW"
 Input  16ohm
 Output Impedance  47k ohm
 Voltage up ratio  28.5dB About 27 times
 Frequency range  10 Hz to 20 kHz
 Demagnetizer  Push button to demagnetize.
 Dimension  W150 H85 D180
 Weight  1.3kg
